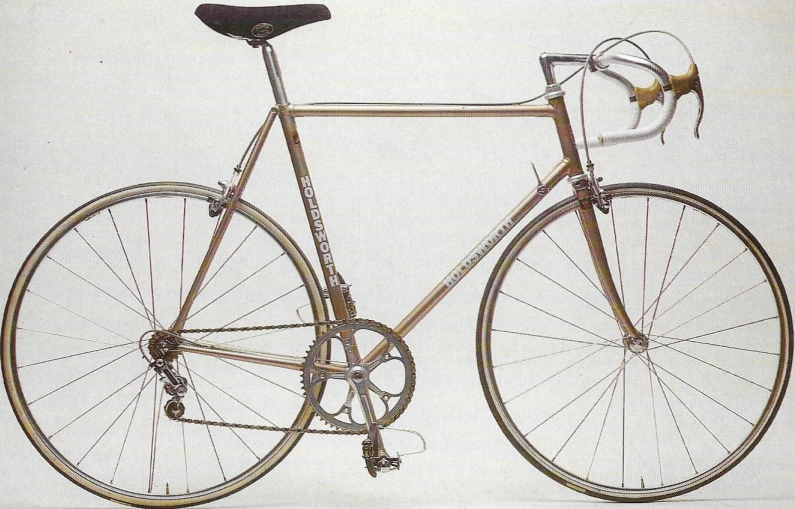

1980-82 Classic TT Bike and Frameset
Introduced as a TT bike in the 1980 Catalogue, similar to the shop built Cronometro. Built with Reynolds 531 SL tubing & very close clearance; 75deg. parallel, 38″ wheelbase, fastback seat stays and Prugnat S4 cutout lugs. Campagnolo dropouts were chromed & drilled and the BB was cutout in 1981. The gear cable run was over the BB but also could go under as mentioned in the 1981 Elan catalogue description, see 1980 example below. Frameset only in 1982 built to special order. Brazed-on fittings inc. RHS gear lever boss, rear brake cable eyes and gear cable tunnel(s) & stop(s) or to choice in all years.

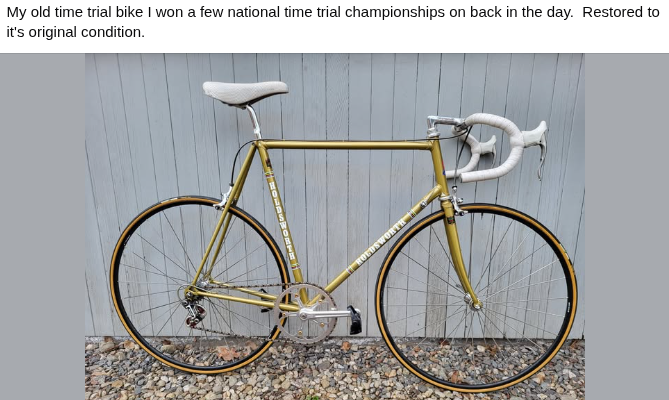

Here is a restored Classic in original form below and one still in use below that.

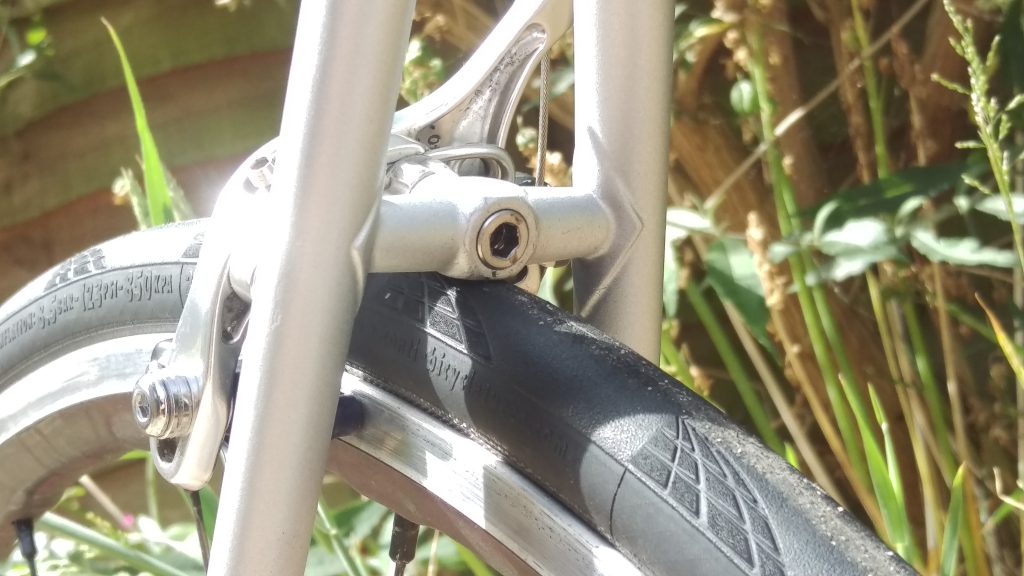

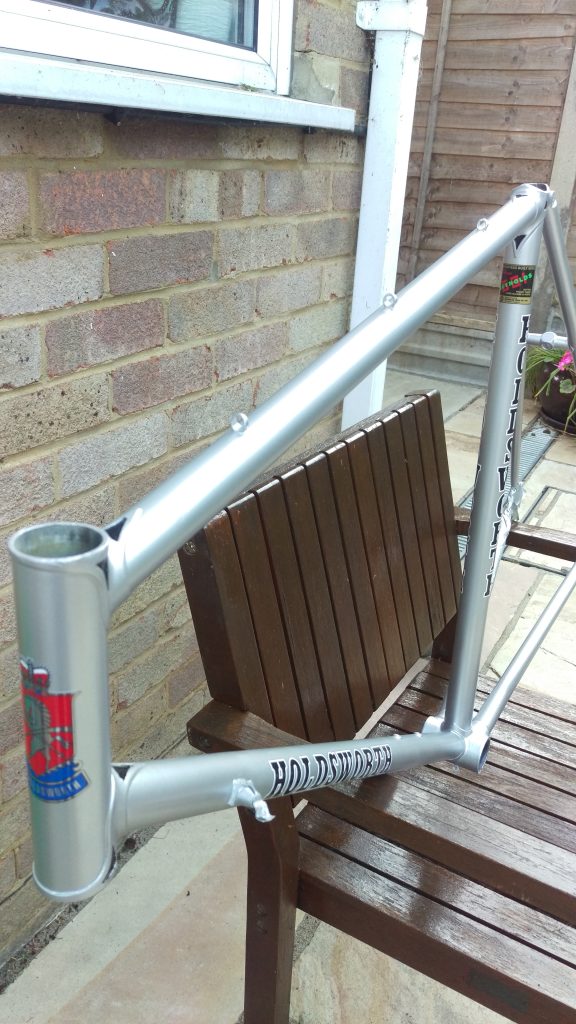

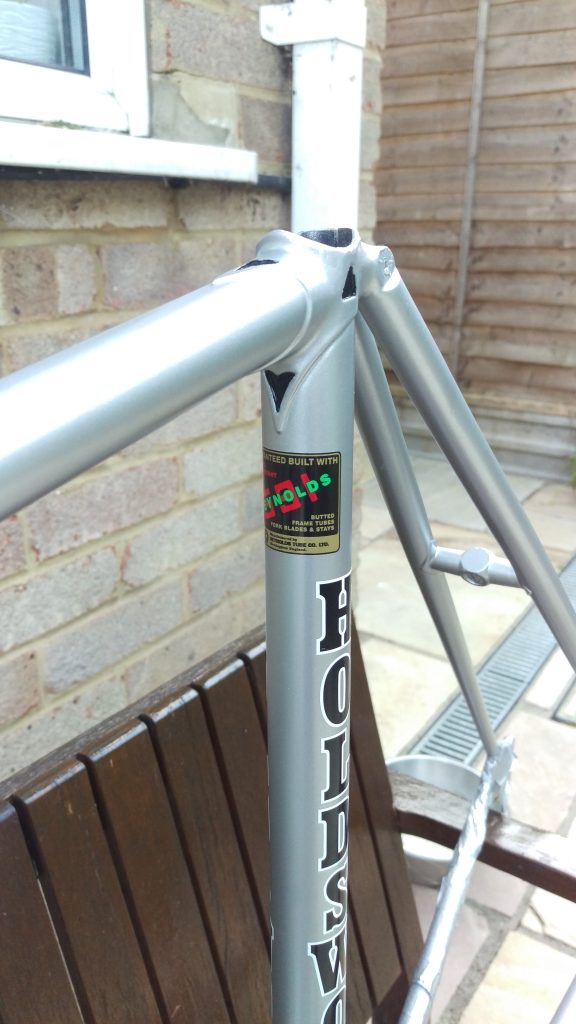

1980 Classic with double under BB cable tunels (10spd), lever bosses & drinks bottel bosses. Note clearances on rear bridge with modern tyres. (very light and responsive bike in retro form used regularly with modern bikes on club runs & TT’s)
.jpg)
.jpg)
Model Recognition Table
| Frame Number System & Location (Repeated on fork Stearer Tube) | 6 Dig. Horz. BB D/Side or under BB Non-drive side +Forks |
| Frame Tubing (Seat Tube ID – mm) | Reynolds 531SL DB (27.2) |
| Frame Angles, Seat/Head, (deg) | 75/75 |
| Tube OD (Inch) – Top-Down-Seat | 1 : 1 1/8 : 1 1/8 |
| Head Tube Lugs | Prugnat S With Cutouts |
| Fork Crown | Cinelli Micro Cast |
| Head Set Type | 1″ Threaded |
| Seat Lug | Cut out |
| Seat Stay Attachment | Fast Back  |
| Seat Stem Bolt | Recessed Alan Bolt |
| Bottom Bracket Lugs | Cut out, BB Lightened in 1981  |
| Gear Cable Run, Over/Under BB | Over – Under Optional |
| Rear Stay Length (CBB – CDO) | 1980 16″ |
| Wheel Base (Spindle to Spindle) | 38″ |
| Rear Dropouts (Front) | Drilled Short 1010B or Vertical  |
| Rear Brake Bridge | Strat. re-enforcment |
| Brake Bridge Boss – Recessed Bolt | Yes, Recessed for Nut |
| BB Hight | 10″ |
| Wheel Size | Tubular |
| Head Badge/Transfer | Decal |
| Decals & Name Plate | Holds on tubes & Reynolds. No Nameplate |
| BB Cable Guides | Tunnels under optionl in 1980, Over with cut out BB 1981 |
| BB Oiler | No |
| Gear Change Lever Lugs | Optional |
| Rear Stay Gear Cable Guides | Top – Under Optional |
| TT Brake Cable Stops/Guides | Optional |
| Mudguard Stay Attachments | No |
| Bottle Holder Bosses | Optional |
| Colour | To Choice |
| Chrome | DO Sides Std. + to Choice |
| Comments | Fast Back, cut out lugs, Very Close Clearance & drilled dropouts. BB lightened in 1981 |
