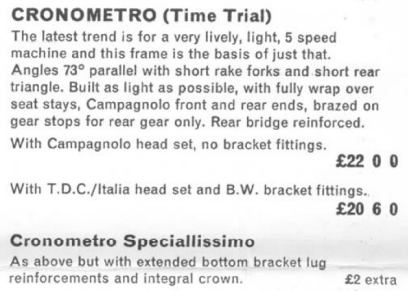

The shop started making frames again for the factory at the end of the 1950’s to cater for individual customer requirements; factory Specials. In the mid 1960’s they made frames of their own design with the Italia range again built to specific customer requirements. The Cronometro was the TT bike in that range and was offered with Speciallissimo extensions to the BB and built to customer requirements.

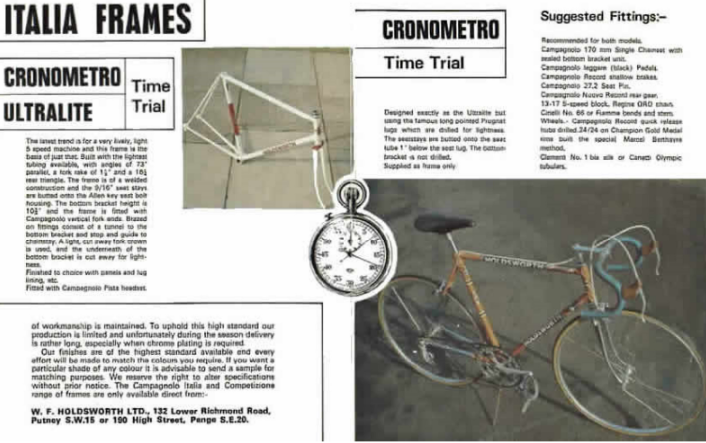

In 1974 the Cronometro was joined by the Ultra Light welded version with fast back seat stays, lightened BB and vertical dropouts.

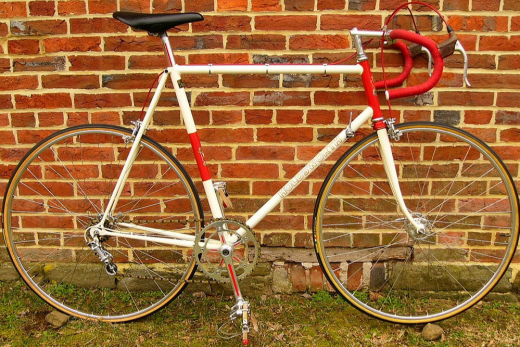

The Cronometro and Ultra Light version continued to be sold by the shop as Roy Thame’s after 1975. Here are two examples, frame numbers 75286 & 75460.

#75286

back to models

Model Recognition Table

Frame Number System & Location (Repeated on fork Stearer Tube)Shop Number System, 2D Yr. Code + 3 Seq. Digits on BB and repeated on Fork Steerer Tube
Frame Tubing (Seat Tube ID – mm)Reynolds 531 DB (27.2)
Frame Angles, Head/Seat, (deg)1967 73/73
Tube OD (Inch) – Top-Down-Seat1 – 1 1/8 – 1 1/8″
Head Tube LugsPrugnat S, Ultra Lite Welded Construction
Fork Crown1967 Short Rake, 1974 Semi-Sloping, Ultra Light Cut Away, 1 1/8″ Rake
Head Set Type1″ Threaded
Seat LugPrugnat Spear Point, Ultra Light Welded
Seat Stay AttachmentWrap Over, Ultra Light Welded & Fast Back
Seat Stem Bolt1967 Integral Allen key
Bottom Bracket LugsPlain with Speciallissimo Option, UL Welded and Lightened
Gear Cable Run, Over/Under BBOver
Rear Stay Length (CBB – CDO)1967 Short, 1974 16 1/4″
Wheel Base (Spindle to Spindle)Not Known
Rear Dropouts (Front)Campagnolo, Ultra Light Vertical
Rear Brake BridgeCurved
Brake Bridge Boss – Recessed BoltNo
BB Hight1974 10 1/4″
Wheel Size700C
Head Badge/TransferBadge
Decals & Name PlateNo
BB Cable GuidesTunnel for Rear only
BB OilerNo
Gear Change Lever LugsAs Requested
Rear Stay Gear Cable GuidesDouble Stop
TT Brake Cable Stops/GuidesNo – Clips
Mudguard Stay AttachmentsNo
Bottle Holder BossesNo
ColourAny Enamel with Contrasting Panels & Lugs Lined
ChromeForks & 10″ Seat Stays on Request
CommentsTT Bike, Ultra Light Welded, Fastback Option
